1.  Application



l        Protect child / the old / the disabled / pet etc

l        Provide peace-of-mind for businessmen

l        Manage personnel

l        Track criminals secretly

2.  Product Functions

1.  Inbuilt GPS Module
2. Internet positioning service center, used to receive and send positioning information
3. GSM /GPRS modem supports Quad frequency bands, i.e. 850/900/1800/1900 MHz
4 High-sensitivity, new workmanship and the most advanced GPS chip
5. Can work effectively in limited space such as urban canyon
6. Low energy consumption
7. Fast signal acquisition
8. Supports single positioning and continuous tracking;
9. Supports alarming and remote monitoring
10. Supports fast dial button
11. Supports the location information inquiry by SMS and Internet
12. May monitor without disturbing the tracked person and realizes real-time tracking;
13. Can position the holder by call or SMS
1. In emergency, press the SOS button to have an accurate positioning

5.  Specs.

(1). Technical Specifications

GSM module

GSM 850/900/1800/1900 MHz Quad frequency

GPS sensitivity

-163dBm

GPS center frequency

L1, 1575.42MHz

GPS positioning accuracy

5-25m

GSM positioning accuracy

1-5m

Speed accuracy

0.1 m/s

Time accuracy

Synchronous with GPS

GPS Datum

WGS-84

Hot start

1s

Warm start

38s

Max. altitude

18000m

Max. speed

515m/s

Gravitational acceleration

4g

(2). Others

Operating temperature

-20---65C

Humidity

5%---95%

Dimensions

64.5mm45.5mm17.5 mm (main unit)

Voltage

Rechargeable 450mAh battery

Power supply

DC5V

Standby time

>48h

Buttons

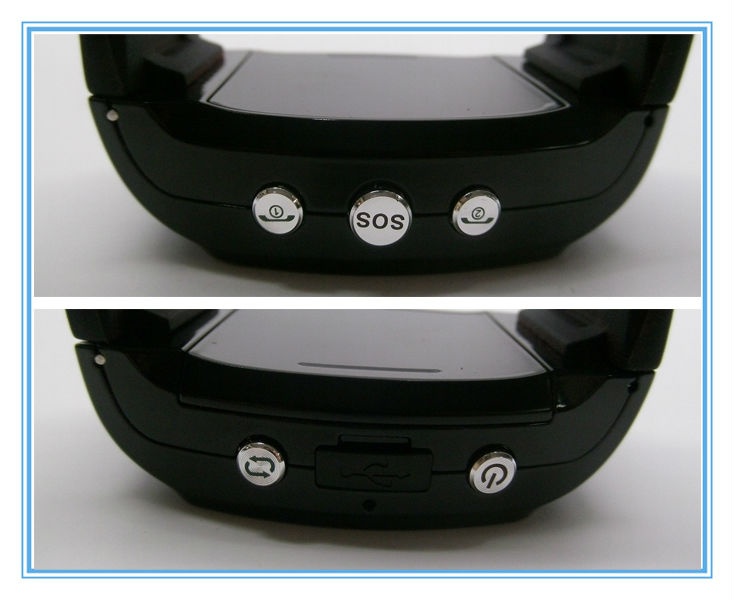

SOS button for emergency aid; Call 1, Call 2, Switch on / off buttons, interface switch button
